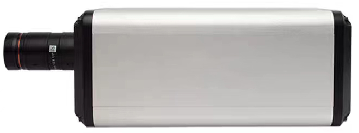

Imaging hyper-spectral camera HSI-20 adopts transmission grating spectroscopic module with high diffraction efficiency and high-sensitivity surface array camera, combined with built-in scanning imaging, automatic focusing and auxiliary camera technology, which solves the difficult operation problems of traditional hyper spectral camera, such as external push scanning imaging mechanism and complex focusing. It can be directly integrated with the imaging lens or microscope with standard C interface to realize the rapid acquisition of spectral images.

　　Parameters

　　Size：255mm*138mm*107mm

　　Weight：<2.8kg(without lens)

　　Image resolution：1920*1920

　　Imaging speed：≤5s

　　Spectral range：400-1000nm

　　Spectral resolution：2.5nm

　　Data interface：Usb3.0

　　Power supply mode：Battery supply

　　(*Comment:The product parameters are for reference only, and the actual product shall prevail)
