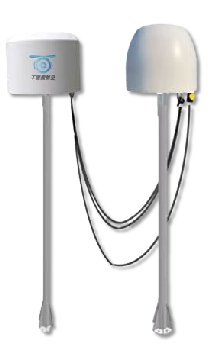

The ZC101-E unmanned aerial vehicle detection and strike integrated system adopts radio spectrum detection technology, which can achieve 24-hour and all-weather deployment of area protection. It can provide "long-distance warning, accurate positioning, full range tracking, automatic interception, and full-time guarding" for "low, slow, and small" unmanned aerial vehicles in complex urban environments. The black flying drone enters the prevention and control area and uses linear frequency modulation signal generation technology to generate wideband, high-speed, and multi-modulation interference signals, which can efficiently interfere with the drone from a long distance to force it to land or return.

　　Parameters

　　Detection unit

　　Size:Diameter 460mm/ circumference 1440mm/ height 350mm

　　position coverage:0-360° (horizontal)

　　Weight:12.80kg (without the shelf)

　　Protection level:IP66

　　Monitor frequency:100MHz~6000MHz

　　Work temperature:-20℃-50℃

　　Detection distance:3~5km(according to the field electromagnetic environment)

　　Working mode:Fixed

　　Countermeasure unit

　　Size:630mm*630mm*560mm

　　Single band interference bandwidth:≥200M

　　Weight<30kg

　　Work temperature:-40℃-65℃,overheat protection85℃

　　Transmitting interference band:300MHz-1000MHz 、1000-2400MHz、2400-2500MHz、5725-5850MHz、2400-6000MHz

　　Interference distance:(Directional≥2km，Omnidirectional≥3km)

　　Working mode:Fixed

　　(*Comment:The product parameters are for reference only, and the actual product shall prevail)
