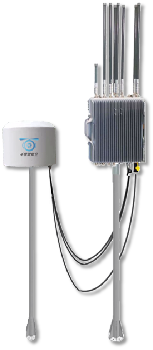

UAV detection & attack in one system adopts radio spectrum detection technology, it can realize 24 hours one day layout of regional protection, it can be the city "Low, slow and small" drones in complex environments for "long-range warning, accurate position, full tracking, automatic interception, full-time guarding . The no license fly UAV enters the prevention and control area, uses multi-frequency and multi-standard directional locking frequency to suppress and block radio waves, so that the UAV loses the imagine transmission signal and control signal, and the no license fly UAV can be forced landing on the spot or driven out of the prevention and control area.

　　Parameters

　　Detection unit

　　Size:Diameter 460mm/ circumference 1440mm/ height 350mm

　　position coverage:0-360° (horizontal)

　　Weight:12.80kg (without the shelf)

　　Protection level:IP66

　　Monitor frequency:100MHz~6000MHz

　　Work temperature:-20℃-50℃

　　Detection distance：3~5km(according to the field electromagnetic environment)

　　Working mode：Fixed

　　Countermeasure unit

　　Size(with antenna)：345mmX155mmX1360mm

　　Position coverage：0-360°(horizontal)

　　Weight：12.5kg

　　Protection level：IP66

　　Transmit frequency band：1.6Ghz/ 2.4Ghz/ 5.8Ghz

　　Work temperature：-10℃-50℃

　　Interference distance：1~2km(according to the field electromagnetic environment)

　　Working mode：Fixed

　　(*Comment:The product parameters are for reference only, and the actual product shall prevail)
