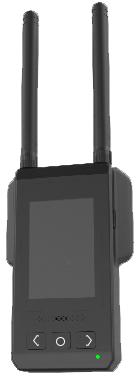

RC207 is a portable customized R & D UAV detection equipment for civil non incense UAV defense and control need. It is lightweight , portable, easy to use, and it can flexibly move the layout detection according to the site, automatically detect and send an alarm when the drone is found.

　　Parameters

　　Detection frequency band:

　　2.4G/wifi:2400-2485MHz;5.2G/5.8G/

　　5.8Gcrossing drone :5200-5900MHz

　　Detection distance：

　　2-3km@2.4G(2400-2485MHz);

　　2-3km@5.8G(5725-5850MHz);

　　(Standard omnidirectional antenna @ relative height of UAV 100m@ open without interference)

　　Direction-finding frquency band

　　2.4G/wifi:2400-2485MHz;5.2G/5.8G/

　　5.8Gcrossing drone: 5200-5900MHz

　　Direction-finding accuracy: <30°

　　Applicable objective :

　　Brand and DIY quadrotor ,

　　fixed wing, crossing drone,

　　WIFI drone

　　Detection response time : 3s

　　Alarm mode : Sound + Vibration +

　　Alarm indicator display shows

　　the image transmission type，

　　frequency ect information

　　Display parameter : 3.5-inch HD color screen(480x320)

　　indicator light : Charge indicator,

　　alarm indicator, power indicator

　　interface: SMA-K*2,Type C

　　work power : Battery 36.15Wh:

　　Standby time >8 hours.

　　Work temperature:-20~55℃

　　Host size : 160x101x45mm

　　Host net weight: ≤600g(without antenna)

　　(*Comment:The product parameters are for reference only, and the actual product shall prevail)
