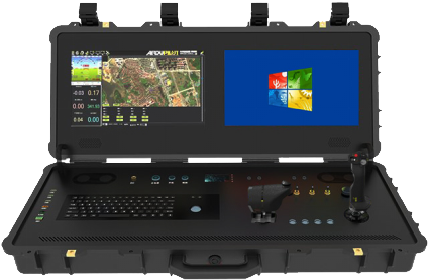

The DMS-03 dual screen ground station focuses on long endurance, high brightness, and long-distance automation tasks, equipped with remote communication systems, high-definition image transmission systems, independent high-definition display screens, industrial motherboards, high-precision Hall remote rods, industrial grade waterproof metal keyboards, etc. It is a reliable unmanned equipment ground control platform.

　　Parameters:

　　Box type：Three defense safety case

　　Cover size：977MM*417MM*156MM

　　Overall weight：20KG

　　Ccreen size：17.3 inch

　　Display resolution：1920*1080

　　Screen ratio：16:9

　　Operation system：Windows 10

　　Host：CPUI7 6700THard Disk512G,Memory16GB

　　Input interface：HDMI

　　I/O interface：USB、RJ45、RS232、HDMI

　　Display content：Voltage, current, Left capacity, power, etc

　　Managementsystem protection：Over current, over voltage, low voltage, over capacity, over power

　　Battery protection：Over current, over temperature, over voltage, low voltage protection

　　Endurance time：use for 4 hours

　　Charge mode：Direct charge by 220V power adapter

　　Material：3K carbon fiber

　　Interface support:USB*2/RS232*1/DCIN/HDMI/RJ45(Capping waterproof)

　　Remote rod：Control pan tilt, direction, etc

　　Paddle：Visible light switching, throwing, ranging modes, etc

　　key：Taking photos, recording, returning to the center, tracking and recording, etc

　　(*Comment:The product parameters are for reference only, and the actual product shall prevail)
